Single Shaft Wobblestick - Wide Angle
Home

WMWA40-XXXX-YYYY

Single Shaft Wobblestick - Wide Angle

From

3’900.00 CHF

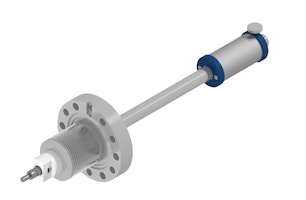

Magnetically coupled linear & rotary manipulator capable of large free angular deflection.

  • Standard Lengths:

    Product CodeLinear Travel XRetracted Length YPrice
    WMWA40-0100-0075100mm75mmCHF 3900
    WMWA40-0150-0075150mm75mmCHF 3950
    WMWA40-0200-0075200mm75mmCHF 4050

    Customization Range:

    Product CodeLinear Travel XRetracted Length YPrice
    WMWA40-XXXX-YYYYmin. 50mm / max. 700mmmin. 60mm / max. 200mm (standard 75mm)CHF 4900

    Connect with Ferrovac sales for expert advice.

    Contact

    • Extra-wide angular range of ±28° for enhanced motion control
    • Linear, angular, and continuous rotational motion for precision handling
    • Customizable stroke and retracted length for tailored integration

    The WMWA40 Wide Angle Wobblestick Manipulator is designed for precise handling in ultra-high vacuum (UHV) systems, offering an extended angular range of ±28° for superior maneuverability.

    To fully utilize this enhanced deflection range, the WMWA40 must be installed with a short oversize tube, such as Ferrovac’s Zero Length Reducing Flange. Special care is required to ensure that the welded bellows and shaft do not come into contact with the tube or chamber walls.

    Viewing enlarged image:

    With linear, angular, and continuous rotational motion, the WMWA40 provides exceptional versatility for sample manipulation, positioning, and other delicate tasks. Additionally, it can function as a screwdriver, securely locking sample holders in place.

    • Mounting Flange: DN40CF
    • Angular Deflection: ±28° (requires bellows protection or a wobblestick flange for full range)
    • Linear Force: 30N
    • Torque:
      • Standard: 0.5Nm
      • High-Torque (HT) version: 1Nm
    • Bakeout Temperature: Max. 200°C
    • Pressure Range: 1E-11 mbar to 1000 mbar
